W Metal Beam Guard Rails for Highway and Bridges

W-beam guardrail has a section or profile of W shape, it is also named as two wave beam guardrail. This is the major type of beam barriers for highways safety with symmetrical designs on each side of the beam. We supply two kinds of finishes for W beam guardrail panels: hot dipped zinc coating or plastic coating. According to the fabricated shapes, our W-beam guardrails can be divided into two types: the straight line w-beam,or the curved beams.

How to choose straight W beam or Curved Beam used for your uses?

The straight W-beam guardrail can be lined up for transitioning smoothly and is suitable to the curves with a radius greater than 45m. For the radius less than 45m, the pre-curved W-beam guardrail product exploits its advantages to a full.

W beam guard railings can be used in expressway and highways to absorb maximum energy of the impact force when collision occures and reduce harms to cars and people. It can also protect the vehicles against skidding off roads, especially mountain roads and bridges and prevent the pedestrians from the danger of walking across highways.

General Technical Information of W Beam / Two Wave Guardrail Barriers:

Base Metal Material: steel: Q235 (S235JR / ASTM A283M) or Q345 (S355JR / ASTM A529M 1994)

Standard specification: 380*85*2.75/3/4*4128/4320mm or 306*80*2.75/3/4*4300mm

Surface finishing: Hot dipped galvanized finish or powder coated.

Zinc coating thickness (double sides): 550 g/m2 (40µ) / 1100 g/m2 (80µ) / 1200 g/m2 (85µ)

Relevant parts required for guard rails: post, spacer (C, U and Sigma types etc) and fasteners

Profile: W-beam / two wave.

Plate Thickness:2.5mm-4mm

Thickness Tolerance: +/-0.015mm

Popular Specification of W Beam Guardrails:
Wave width: 310mm
Wave height: 85mm
Plate thickness: 2.5mm - 4mm
Beam length: 4320mm

Scise Most Popular W Beam Guardrail System ( beams and necessories parts for installing ) for Export is composed as following:

Guardrail W-Beam Galvanized including bolts, nuts and washers;
Guardrail Steel Post, Box Beam;
Guardrail End Units;
Guardrail Terminal Units;
Hot Dipped Galvanized Steel Guardrail W Beam;
Hot dipped galvanized terminal section;
Hot dipped galvanized round steel post;
Hot dipped galvanized post cap;
Hot dipped galvanized black spacer;
Hot dipped galvanized flat plate washer;
Hot dipped galvanized bolts.

Packing 1.)25 pieces metal beam road guardrails per bundle, and then fasten the bundle with wire straps or hemp ropes.
2.)One 20 feet GP will hold about 510 pieces.
3.) Customers' requirements are available, too

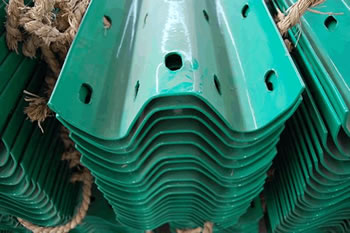

Green Clolor Two Wave Highway Guardrails

Two Wave Highway Guardrails Packing Two Wave Highway Guardrails Application



Popular Specifications:

Normal W Beam Specification 4130×310 × 85 × 2.5(2.67/2.7/3.0 )
  4320 × 310 × 85 × 2.5(2.67/2.7/3.0)
  3520 × 310 × 85 × 2.5(2.67/2.7/3.0)
Profile A Specification 4300 × 306 × 80 × 2.5(2.67/2.7/3.0)
Profile B Specification 4300 × 310 × 75 × 2.5(2.67/2.7/3.0)
Zinc Coating 550g/m²(40u)   1100g/ m² (80u) 1200g/ m² (85u)
Standard   JT/T 281-1995 AASHTO-M180   RAL RG620

Wave Size Applied to W Beam Guardrails:


W-beam
Length 4100-4400mm
Wave width 300-600mm
Wave height 50-100mm
Thickness 2-6mm
Notes: Custom length, width, height and thickness are available as your requirements.

Curved W Wave Guardrail Radius Details:

Radius (Feet) H/ Rise (Inches) Radius (Feet) H/ Rise (Inches)
5 (1.5m) 41 55 (16.8m) 4 1/4
6 (1.8m) 36 60 (18.3m) 4
8 (2.4m) 28 65 (19.8m) 3 5/8
9 (2.7m) 26 70 (21.3m) 3 3/8
10 (3.1m) 22 75 (22.9m) 3 1/4
12 (3.7m) 20 80 (24.4m) 3
13 (4m) 18 85 (25.9m) 2 3/4
15 (4.6m) 16 90 (27.4m) 2 5/8
16 (4.9m) 14 95 (29m) 2 1/2
20 (6.1m) 11 5/8 100 (30.5m) 2 3/8
25 (7.6m) 9 1/2 110 (33.5m) 2 1/8
30 (9.1m) 7 3/4 120 (36.6m) 2
35 (10.7m) 6 3/4 130 (39.6m) 1 3/4
40 (12.2m) 6 140 (42.7m) 1 5/8
45 (13.7m) 5 1/4 150 (45.7m) 4 1/2
50 (15.2m) 4 5/8

W Beam & Pedestrian Barrier Project in Australia

Post and rail barrier for office block area and other sites.

Guardrail Fence:



Optional: W beam guard rail system 900 mm high
These system are going on a concrete floor.
The posts have base plates.
Delivery to Melbourne port.

12 Gauge W Beam Highway Guard Rails

We supply w wave corrugated metal beam 12 GAUGE(2.7P MIN.) for high way guard rails & bridge rails, AASHTO M 180 standard specifications and other international qualities. The system contains W-beam rail element, backup plates, and terminal sections, the 12 gage steel formed into a beam minimum 12 inches ( 300 mm) wide and 3 inches (75 mm) deep. The 6 inch channel rail and splice plate are manufactured in conformance with AASHTO M 183. AASHTO is simplified term of American Association of State Highway and Transportation Officials. Quality meeting Division 12 --1204 for metal beam guard rail of Kuwait and other other international qualities are also supplied.

Physical properties of the materials is as follows:

Tensile Strength: 483 MPa (min)
Yield Strength 345 MPa (min)
Elongation 12% (min).
Guard rails is supplied with Mill Test certificates of the materials.

12 Gauge Beam Guardrails: Elements and Parts

Steel Quality as per Grade Fe 410 or equivalent for W Beam.
Hot Dip Galvanizing as per AASHTO M180, 550 gm/m2.
Metal beam corrugating type: W beam

Details as below attached for reference:

1. Guard rails straight-3.0mm C/C class 'A' type

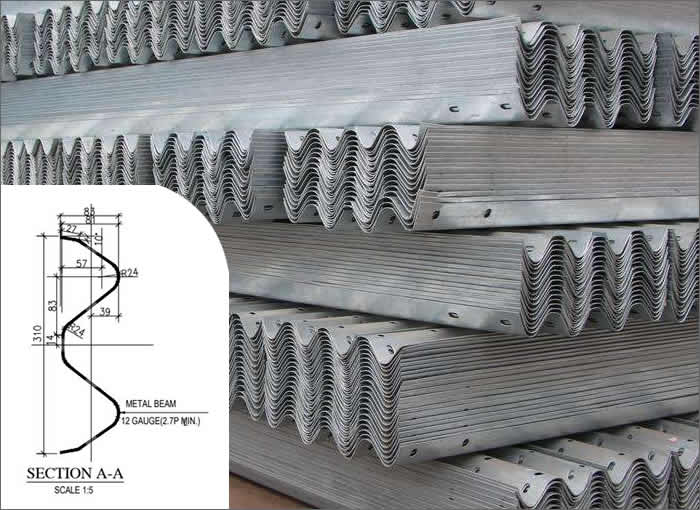

W Beam Guard Rails of 12 Gauge Steel Plate

Material quality: AASHTO
3 mm thick Guard rails, W beam, in black finish.
Also Bridge Railing post only in aluminium mill finish.

2. Guard rail reflector
Quality: AASHTO

3. Railing Post, M16 x 32 bolt, Nut & Washer

Bulk Head
Finish: Galvanized
Quality: AASHTO

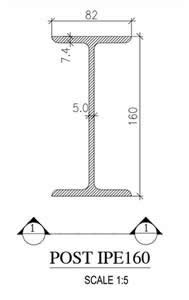

Guard Rails with Steel Post Blocks

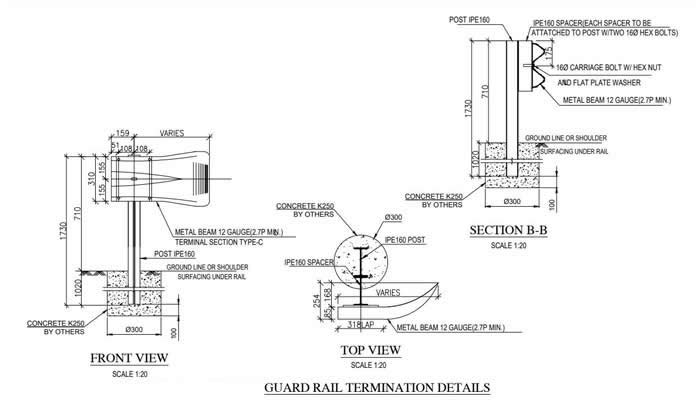

GUARD RAIL TERMINATION DETAILS

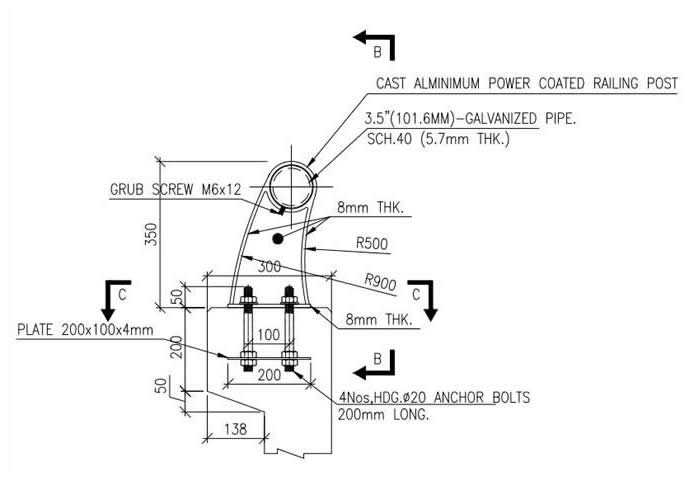

Railing Post and Accessories

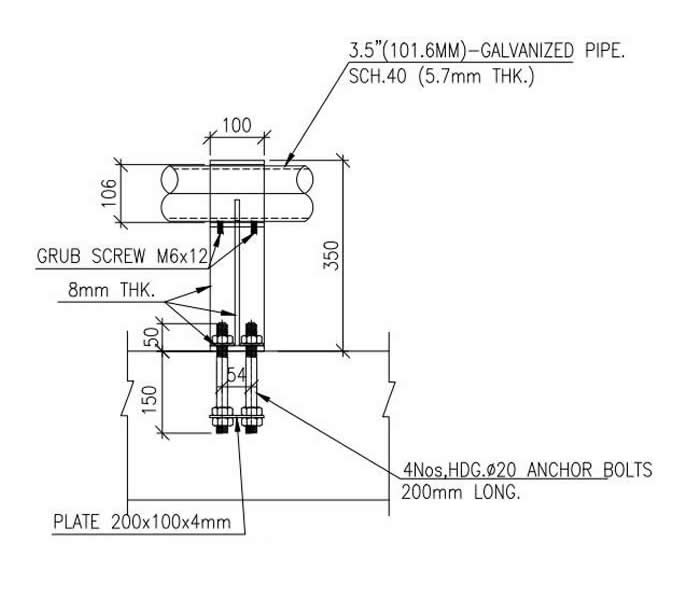

Pipe, Screw and Bolts

4. M16 x 45 mm,Bolt, Nut & Washer

Bulk head
Finish: Galvanized
Material quality: AASHTO
