Welded Mesh Fence Panels for Highway Security, Hot Dipped Galvanized or PVC Coated
Highway Fence Panels Material: High quality low carbon steel wire, high carbon steel wire, galvanized iron wire (Q195 & Q235)
It is made by welded of wire mesh to form panels or sheets with uniform opening and firm structure.
Metal wire mesh fences and beam guardrails, sound barriers are three important fencing products for highway security and crowd control.

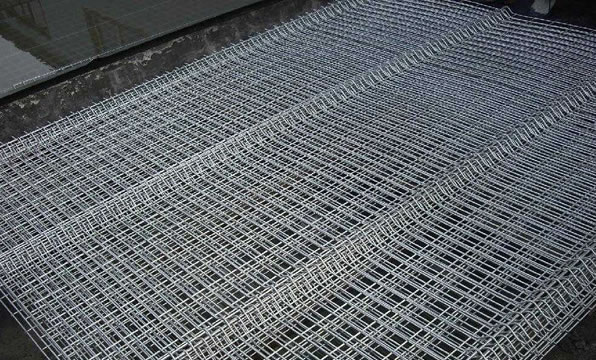

Welded Highway Fence Panels Treated with Hot Dipped Galvanizing
Surface Treatment: Hot dipped galvanized, PVC coated, PE coated, Electro galvanized.

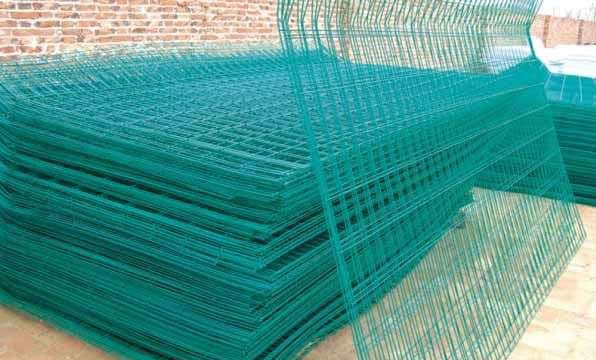

PVC Coated Highway Fence Panels(Green Color)
Color: The wire fence has rich colors: Green RAL6005, Black RAL9005, Blue, Grey, Brown, Yellow etc colors as your request.

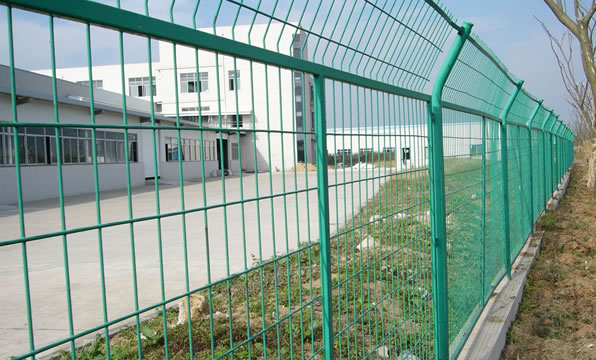

Fence Panels Application: Widely used for prevention for road, highway, railway, garden, airport, residential district, seaport, feeding and husbandry,military base
Metal Fence Panels
Fence Panel Process: Wire Drawing → Wire Straightening & Wire Cutting → Welding → Folds/Curves Bending → Electric Galvanizing/Hot-dipped Galvanizing → Parkerizing → PVC Coating /Spraying → Packing → Loading
Fence Post Process: RawMaterial → Cutting → Hole Drilling → Electro Galvanizing/Hot-dipped Galvanizing → Sandblasting → PVC Coating/Spraying → Packing → Loading
Wire Mesh Fence Specification with Square Post
| Size | 40*60mm, 50*50mm, 60*60mm, 80*80mm |
| Thickness | 1.2mm, 1.5mm, 2.0mm |
| Height | 1.3m, 1.5m, 1.6m, 1.8m, 2.0m, 2.5m, 3.0m |
| Surface | Elec. Gal., Hot-dip Gal., Powder spray, Deep Powder coated |
| Clip | Plastic, Metal |
Wire Mesh Fence Specification with Round Post
| Size | 38mm, 40mm, 42mm, 60mm |
| Thickness | 1.2mm, 1.5mm, 2.0mm |
| Height | 1.5m, 1.6m, 1.8m, 2.0m, 2.5m |
| Surface | Elec.Gal., Hot-dip Gal., Powder spray, Deep Powder coated |
Wire Mesh Fence Specification with Peach Post
| Size | 50*70mm, 70*100mm |
| Thickness | 1.2mm |
| Height | 1.5m, 1.8m, 2.0m, 2.5m |
| Surface | Pre hot dipped galvanized + Powder Spray |
Package
Fence panel: Plastic film for every piece in bulk or Wooden/Metal Pallet
Fence post: Plastic film + Wooden/Metal Pallet
Accessories: In woven bags or Cardboard boxes
Feature: It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations
Specifications of Fence Panels with Fencing Gates:
| The type of the vertical- hinged door | Single door Double door |
| Height of the gate (mm) | 1.0m, 1.2m, 1.5m, 1.8m, 2.0m |
| Width of the gate (mm) | Single leaf: 1m, 1.2m, 1.5m Double leaf: 2m, 3m, 4m, 5m, 6m, 8m |
| Gate frame surface | Square tubes: 35X35mm, 40X40mm, 50mmX50mm, 60mmX60mm |
| Surface treatment | Galvanized Steel pipe+ high adhesion electrostatic spraying processing |
| Color | RAL 6009 colors |
| Wire diameter | 4mm, 4.8mm, 5mm, 6mm |
| mesh size | 50*100mm, 50*150mm, 50*200mm |
| height | 1.5m, 2.2m, 2.4m, |
| Single gate size | 1.5*1m, 1.7*1m |
| post | 40*60*1.5mm, 60*60*2mm |
| Surface treatment | Electric galvanzied then Powder coated, hot-dipped |
